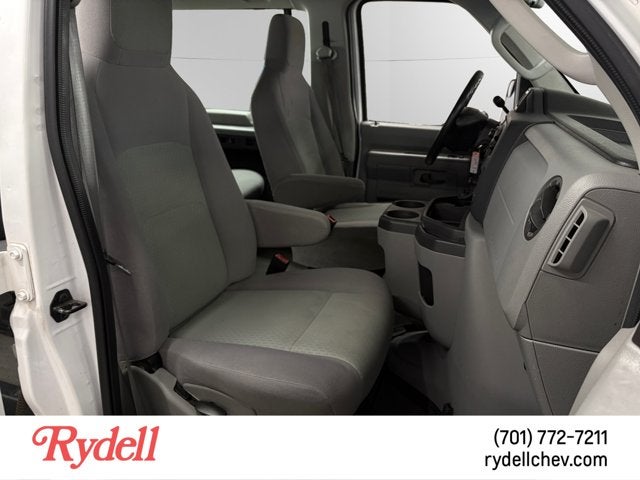

• 15-passenger seating
• Black cowl side trim panels
• Black plastic stepwell pads
• Courtesy light switches for all doors
• Dual A-pillar grab handles
• Front dome light
• Front inboard armrest
• Glove box w/auxiliary pwr point
• Medium flint cloth/vinyl sunvisors
• Medium flint coat hooks
• Medium flint full-length acoustical cloth headliner

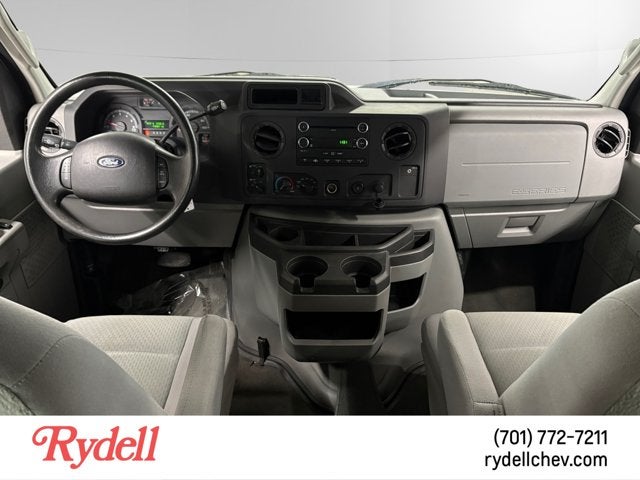

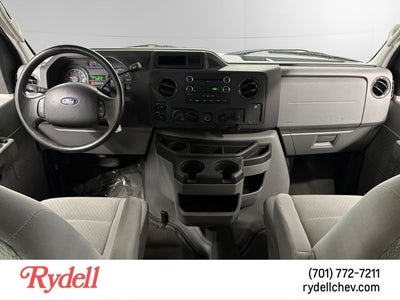

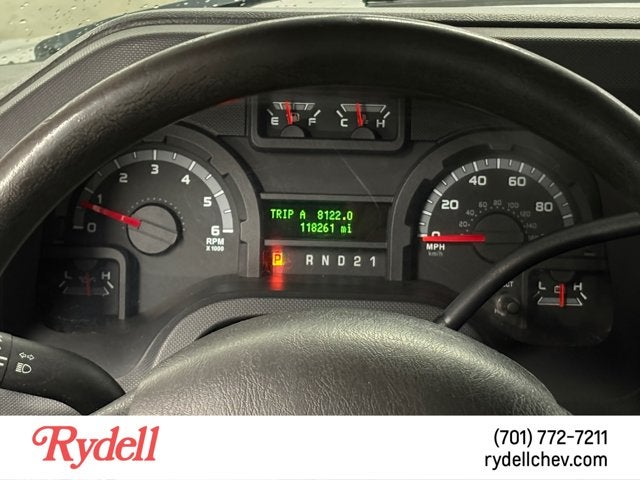

• Medium flint instrument panel w/tachometer

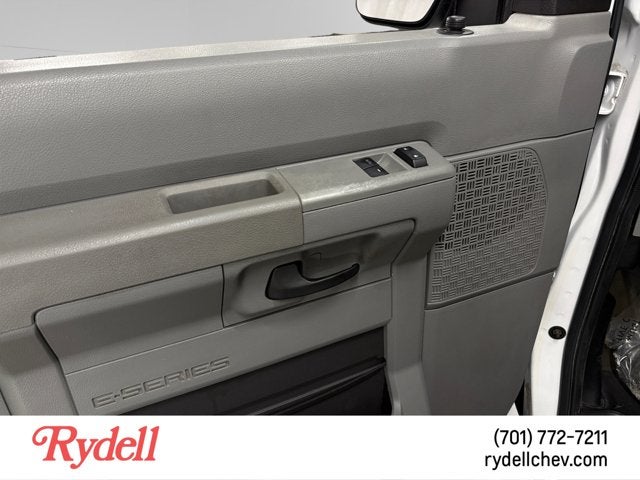

• Medium flint plastic front door trim panels
• Medium flint polypropylene side/rear quarter door trim panels
• Rear cargo light

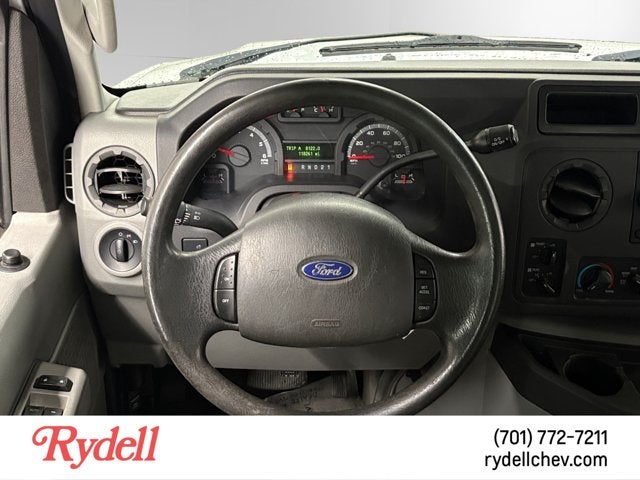

• Tilt steering wheel

• 120 amp alternator
• 5000# capacity twin I-beam front/6340# capacity semi-floating rear axles
• Electronic throttle control
• Front & rear HD shock absorbers
• Front stabilizer bar
• Pwr 4-wheel disc brakes
• Pwr steering
• Rear-wheel drive

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control
• Driver & front passenger 2nd generation airbags
• Dual note electric horn
• Front height adjustable 3-point safety belts
• Rear 3-point shoulder/lap safety belts in all positions
• Tire pressure monitoring system (TPMS)

5.4L EFI FFV V8 ENGINE

• (STD)

• Rear Wheel Drive
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Wheel Covers
• Steel Wheels
• Conventional Spare Tire
• Intermittent Wipers

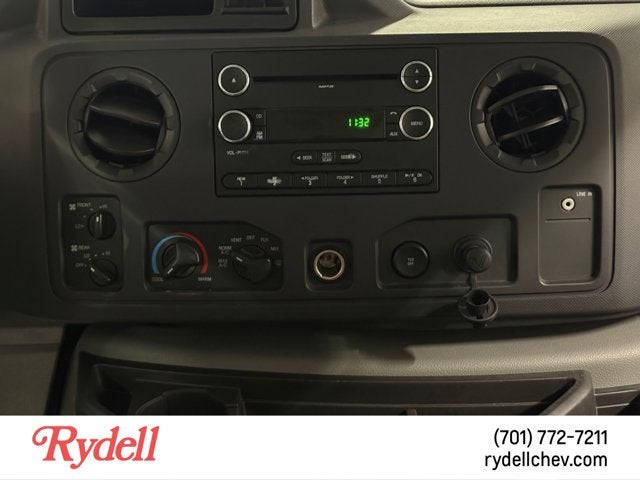

• AM/FM Stereo
• 3rd Row Seat
• Vinyl Seats
• Bucket Seats
• 3rd Row Seat

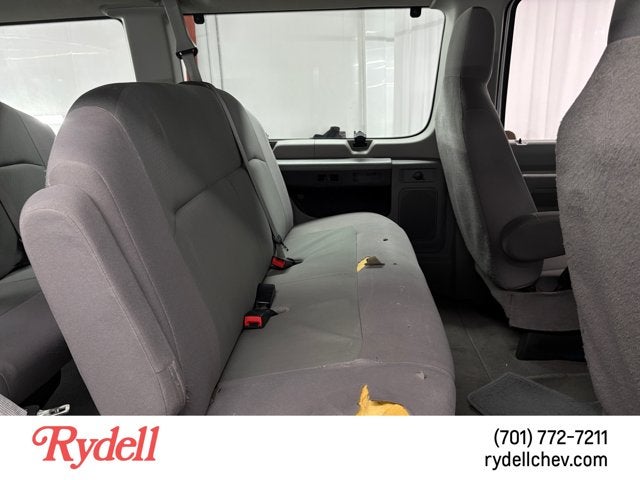

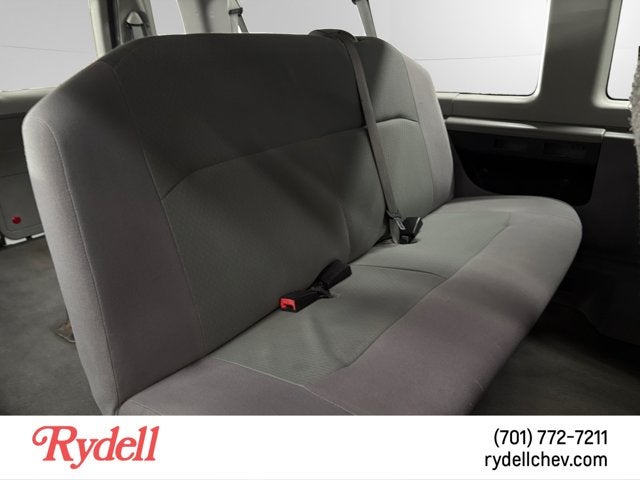

• Rear Bench Seat
• 3rd Row Seat
• Adjustable Steering Wheel
• A/C
• Rear A/C
• Power Outlet
• Power Outlet
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Brakes
• Brake ABS System: Four Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.58 x
• Rear Brake Rotor Diam x Thickness (in): 13.58 x

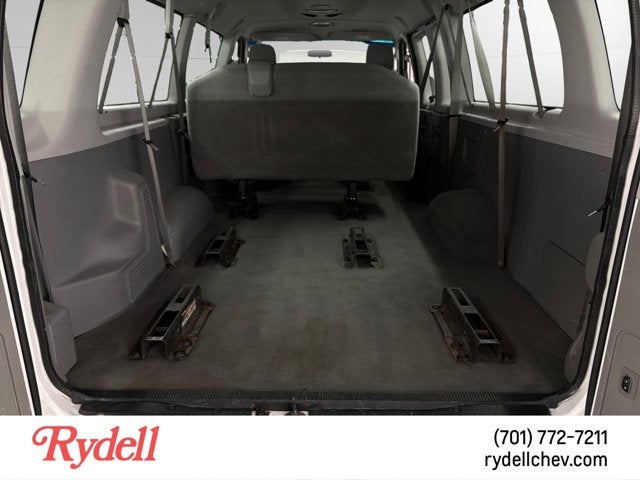

• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Length : Floor to Seat 2 (in)
• Cargo Area Length : Floor to Seat 3 (in)
• Cargo Area Length : Floor to Seat 4 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 51.9
• Cargo Box Width : Wheelhousings (in)
• Cooling System
• Total Cooling System Capacity (qts): 28.3
• Doors
• Side Door Type: Hinged 60/40
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 120
• Maximum Alternator Watts: 1620
• Exterior Dimensions
• Ground to Top of Load Floor (in): 29.1
• Height, Overall (in): 82.3
• Length, Overall w/rear bumper (in): 236.7
• Overhang, Front (in): 34.9
• Overhang, Rear w/bumper (in): 63.8
• Rear Door Opening Height (in): 48.0
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 47.2
• Side Door Opening Width (in): 44.8
• Wheelbase (in): 138.0
• Width, Max w/o mirrors (in): 79.4
• Frame
• Frame Type: 1 Channel Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Interior Dimensions
• Fifth Head Room (in): 37.4
• Fifth Hip Room (in): 65.8
• Fifth Leg Room (in): 37.0
• Fifth Shoulder Room (in): 67.5
• Fourth Head Room (in): 39.6
• Fourth Hip Room (in): 66.1
• Fourth Leg Room (in): 39.4
• Fourth Shoulder Room (in): 69.4
• Front Head Room (in): 42.0
• Front Hip Room (in): 65.6
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Passenger Capacity: 15
• Second Head Room (in): 40.2
• Second Hip Room (in): 68.6
• Second Leg Room (in): 38.8
• Second Shoulder Room (in): 72.8
• Third Head Room (in): 40.1
• Third Hip Room (in): 66.8
• Third Leg Room (in): 40.0
• Third Shoulder Room (in): 71.7
• Steering
• Steering Ratio (:1), At Lock: 17.0
• Steering Ratio (:1), On Center: 17.0
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): 50.0
• Summary
• Body Code: 138.0" WB
• Body Style: Ext Passenger Van

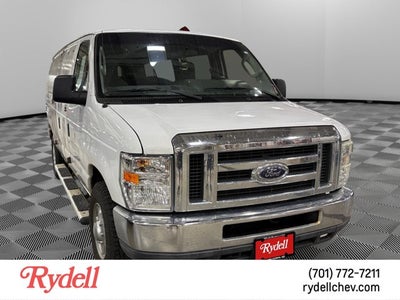

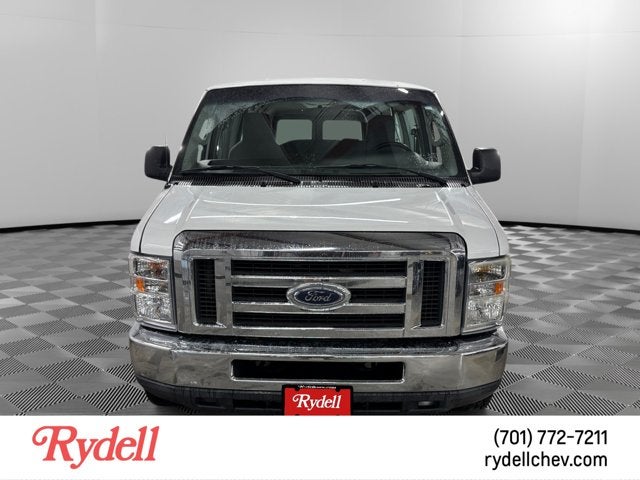

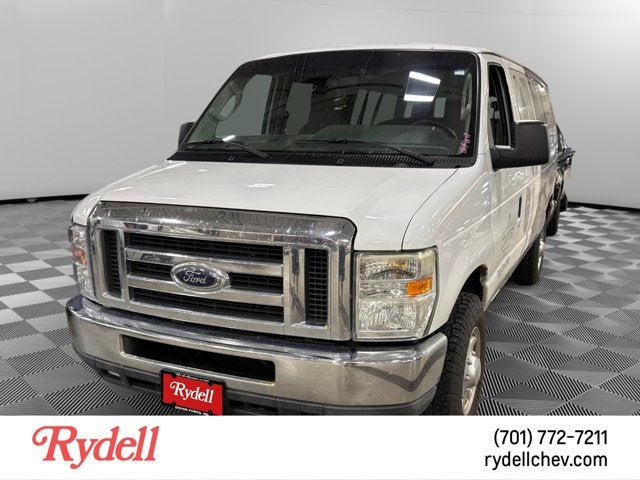

• Vehicle Name: Ford Econoline Wagon
• Suspension
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 6340
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 3100
• Spring Capacity - Rear (lbs): 6195
• Stabilizer Bar Diameter - Front (in): 1.00
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf

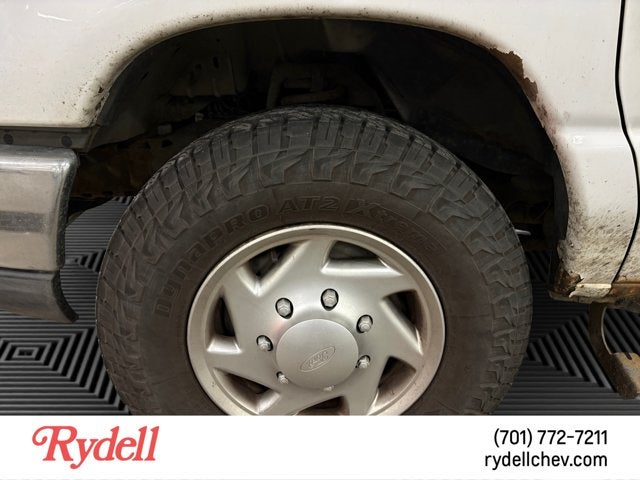

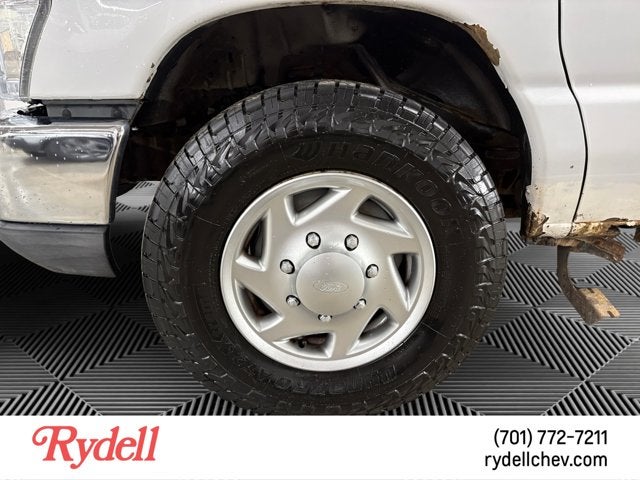

• Tires
• Front Tire Capacity (lbs): 3042
• Front Tire Order Code: T38
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: T38
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 3042
• Spare Tire Order Code: T38
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 945
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Vehicle
• Rear Door Type: Panel

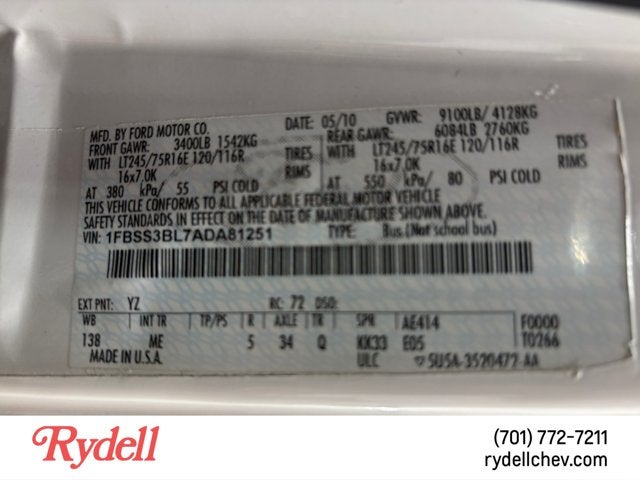

• Weight Information
• Curb Weight - Front (lbs): 2902
• Curb Weight - Rear (lbs): 3546
• Gross Axle Wt Rating - Front (lbs): 3250
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 9100
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 7
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 X 7
